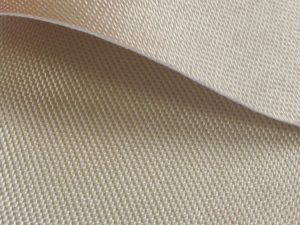

SILTEX® silica fabric and textiles are high-temperature resistant materials with a continuous operating temperature of 1800° F • 982°C. These fabrics from Mid-Mountain can be used in a range of configurations, including silica mat and silica fabrics.
Widely used for equipment and personnel protection in industries such as Welding, Shipbuilding, Metals Processing, Refineries, Foundries, Power Generation, and Petrochemical, SILTEX® Woven Fabrics and Textiles can be applied to applications where thermal insulation is essential to the reduction of maintenance and energy costs.
Comprised of high purity, high strength 96% amorphous silica fibers, SILTEX® Silica Fabrics, and Textiles are optimal in applications where E-glass fabrics would typically fail.
SILTEX® 36-UH Woven Silica Fabric is an FM Approved product for use in Welding Curtains.
| PRODUCT | HIGHLIGHTS |
| Silica Fabric Applications | – Welding Blankets, Curtains, and Pads – Diesel Engine Exhaust Covers – Fire-resistant doors – Furnace Insulation – Turbine Insulation – Thermocouple Insulation – Furnace pads and separators |
| Silica Fabric Features | – Low Thermal Conductivity – Chemical Stability and Oxidation Resistance – Maintains Flexibility and Strength during use – Resists Molten Metals – High Dielectric Strength – Low Halogen Content – Low Smoke Emission |
| Style | Weave | Weight (oz/sy) | Thickness (in) | Width (in) | Technical Data Sheet | Safety Data Sheet |
|---|---|---|---|---|---|---|
| 18-UH | 8 Harness Satin | 18 | .031 | 36 | ||
| 21-AL | 8 Harness Satin | 21 | .026 | 32.75 | ||
| 36-UH | 12 Harness Satin | 36 | .045 | 36 |
| Material | Operating Temperature | Tensile Strength (lbs.) | Tex (g/km) | Yield (ly/lb) | Technical Data Sheet | Safety Data Sheet |
|---|---|---|---|---|---|---|
| 98% Amorphous Silica | 1800°F • 982°C | 3.8 | 150 | 3300 | ||
